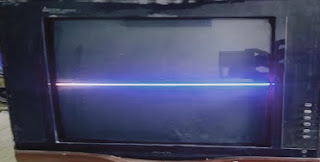

How to repair China tv Vertical Problem

Asslam o Alaikum dear readers.

Today i tell you how to you repair your china tv vertical fault in just few steps.

First of all unplug the tv from socket then open the back cover of tv.

Fault 1 )

Check the Vertical ic voltage on pin number 2.

if voltage ok then replace the vertical ic.

else check the voltage line where to drop.

Fault 2 )

Change the vertical ic then plug in main supply .

Fault 3 )

Check the 5V on tunner MB pin.

if Voltage is ok replace the jungle.

else change the C1383 transisters . the transisters place near the audio ic.

Main Faults of vertical line

• Missing Voltage of Vertical ic
• Burn Vertical
• Faulty jung ic
• Missing 5V of Mb pin on Tunner.
